Rib Positioning Clamps & Concrete Pile Breakers
Specialized hydraulic positioning clamps engineered for handling, placing, and supporting heavy structural steel ribs (HEA, IPE, IPN profiles) inside tunnel archways and underground infrastructure projects.
✓ Custom-contoured clamping jaws specifically matched to HEA, IPE, and IPN structural I-beam profiles
✓ Available with fixed interface (PC 02) or 270 degree hydraulic rotation mechanism (PC 03)
✓ Constructed with wear-resistant Hardox steel plates for severe underground duty
✓ Direct integration into standard excavator auxiliary hydraulic circuits
Complete PC Series Engineering Specification Matrix
| Model | Excavator Carrier Weight (lbs) | Attachment Weight (lbs) | Overall Length L (in) | Profile Dimension A (in) | Profile Dimension B (in) | Working Pressure (psi) | Oil Flow (gpm) | Rotation Pressure (psi) | Rotation Flow (gpm) |
|---|---|---|---|---|---|---|---|---|---|
| PC 02 | 33,075 : 110,250 | 1,433 | 59.0 | 14.0 | 6.0 | 3,600 / 3,625 | 10.6 / 21.1 | N/A | N/A |
| PC 03 | 33,075 : 110,250 | 2,535 | 79.0 | 14.0 | 6.0 | 3,600 / 3,625 | 10.6 / 21.1 | 2,000 / 2,030 | 2.6 / 6.0 |
Restored Factory & Jobsite Photo Gallery (PC Series · 8 High-Res Photos)
Open All 22 Trevi Benne Albums (184 Photos) in MOD-LIGHTBOX ->
⊞ Lightbox
Trevi Benne PC Series - PC 02
⊞ Lightbox

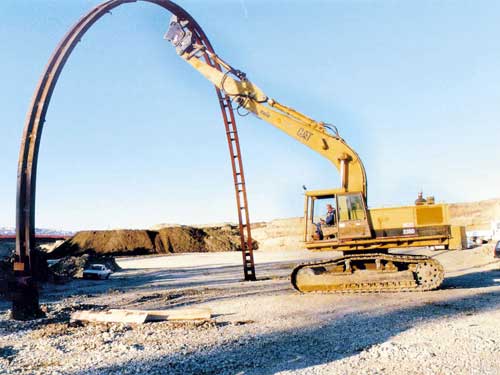

Trevi Benne PC Series - PC 02 2
⊞ Lightbox

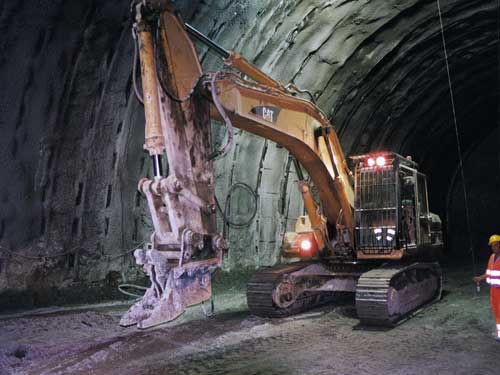

Trevi Benne PC Series - PC 02 galleria
⊞ Lightbox

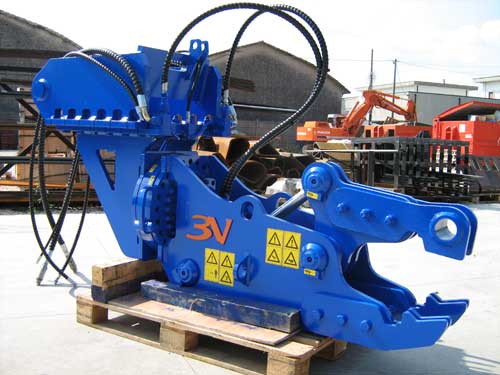

Trevi Benne PC Series - PC 03
⊞ Lightbox

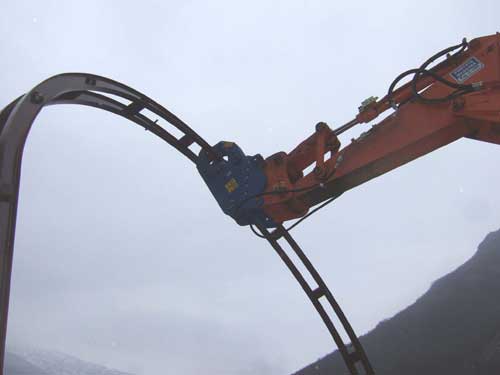

Trevi Benne PC Series - PC 1
⊞ Lightbox

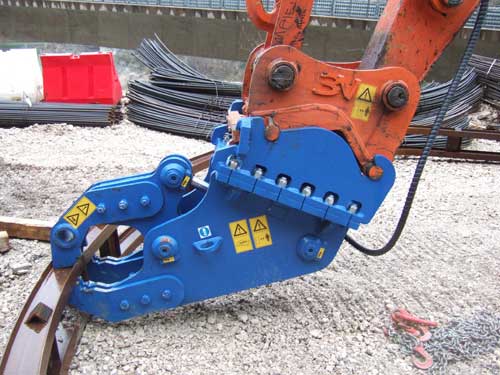

Trevi Benne PC Series - PC 2
⊞ Lightbox

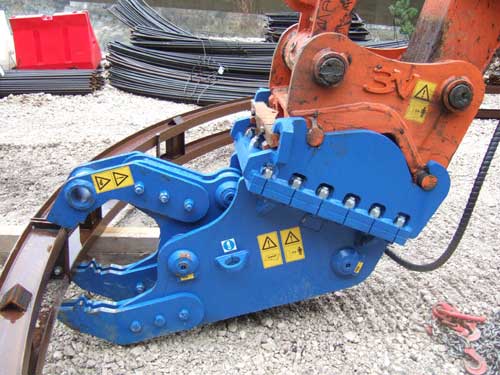

Trevi Benne PC Series - PC 3
⊞ Lightbox

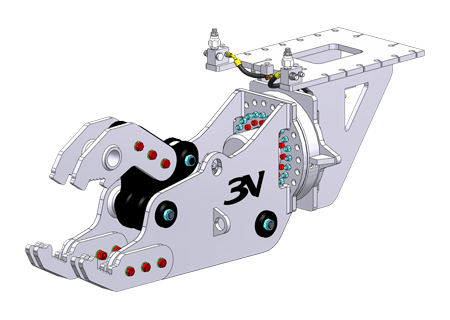

Trevi Benne PC Series - PC gray
