BM Series · TREVI BENNE S.P.A. ITALY
Excavator Jaw Crusher Buckets
The BM Series crusher bucket is engineered to crush concrete, rubble, and rock material resulting from demolition, building restoration, quarry extraction, and site excavation directly on site.
✓ Constructed with Hardox wear-resistant steel for extreme longevity
✓ Adjustable output sizing from 0.8 in (20 mm) up to 4.7 in (120 mm)
✓ Processes material directly on job sites to eliminate trucking and disposal costs
✓ Designed using 3D SolidWorks engineering for optimized internal material flow
Complete BM Series Engineering Specification Matrix
| Model | Excavator Weight (lbs) | Attachment Weight (lbs) | Length A (in) | Height B (in) | Width L (in) | Mouth Width C (in) | Mouth Height D (in) | SAE Capacity (cu yd) | Pressure (psi) | Oil Flow (gpm) | Output Setting (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BM 15 | 26,460 : 44,100 | 3,300 | 80.7 | 46.5 | 32.7 | 23.6 | 17.7 | 0.65 | 2,900 | 40.0 | 0.8 / 3.9 |
| BM 25 | 39,690 : 55,125 | 5,500 | 96.5 | 50.8 | 38.2 | 29.5 | 21.6 | 0.80 | 3,200 | 48.0 | 0.8 / 4.7 |
| BM 35 | 55,125 : 99,225 | 7,700 | 108.2 | 55.5 | 46.1 | 35.4 | 25.6 | 1.20 | 3,200 | 48.0 | 0.8 / 4.7 |
Jobsite Field Demonstration Videos (BM Series)
Trevi Benne BM35E Field Operation
Restored Factory & Jobsite Photo Gallery (BM Series · 14 High-Res Photos)
Open All 22 Trevi Benne Albums (184 Photos) in MOD-LIGHTBOX ->
⊞ Lightbox
Trevi Benne BM Series - BM 25 1
⊞ Lightbox

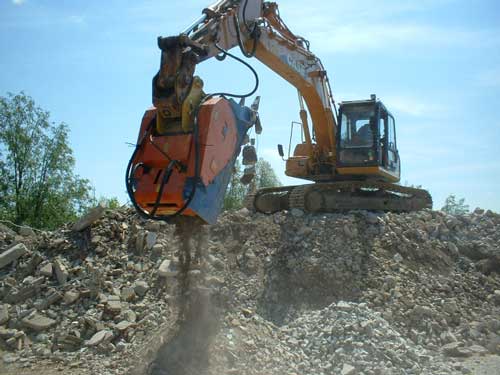

Trevi Benne BM Series - BM 25 2
⊞ Lightbox

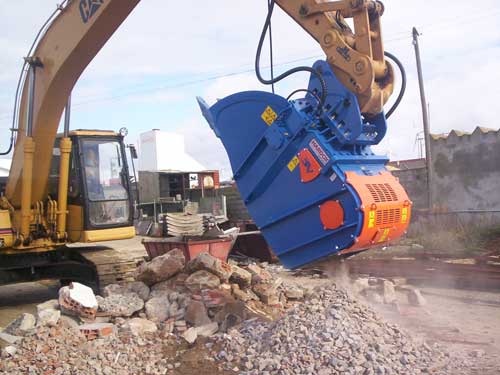

Trevi Benne BM Series - BM 25 New 1
⊞ Lightbox

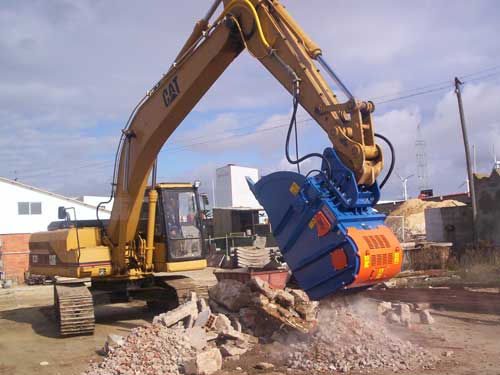

Trevi Benne BM Series - BM 25 New 2
⊞ Lightbox

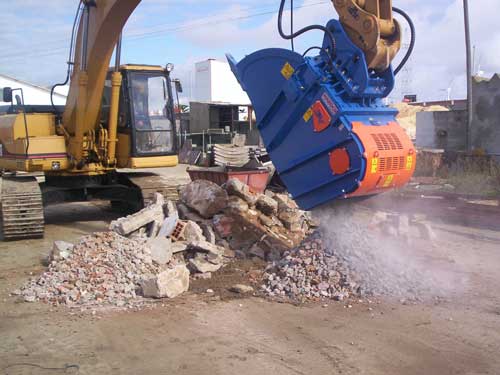

Trevi Benne BM Series - BM 25 New 3
⊞ Lightbox

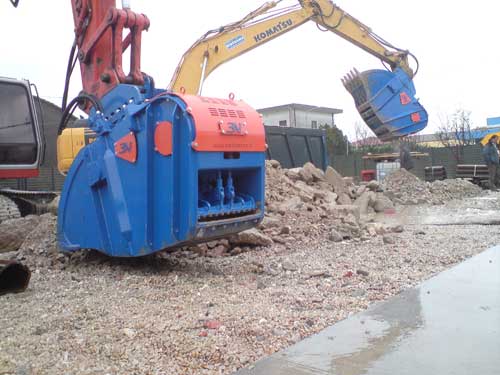

Trevi Benne BM Series - BM 25 e BM 35
⊞ Lightbox

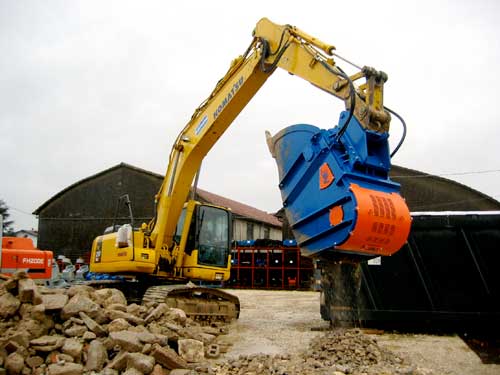

Trevi Benne BM Series - BM 35
⊞ Lightbox

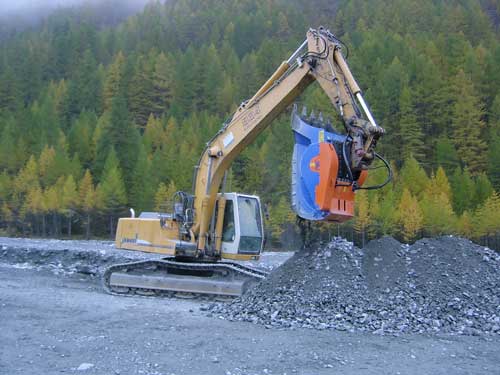

Trevi Benne BM Series - BM 35 1
⊞ Lightbox

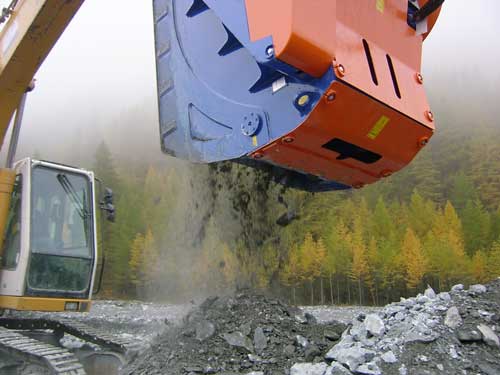

Trevi Benne BM Series - BM 35 2
⊞ Lightbox

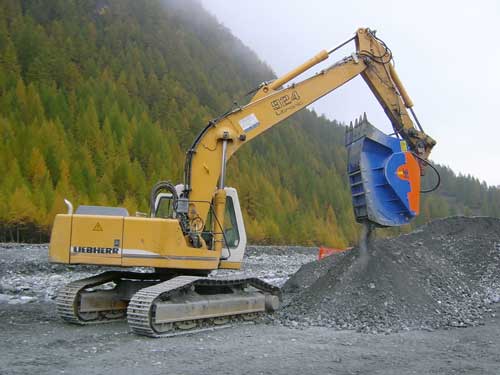

Trevi Benne BM Series - BM 35 3
⊞ Lightbox

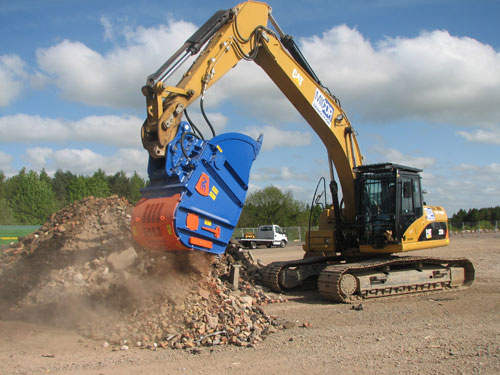

Trevi Benne BM Series - BM 35 6
⊞ Lightbox

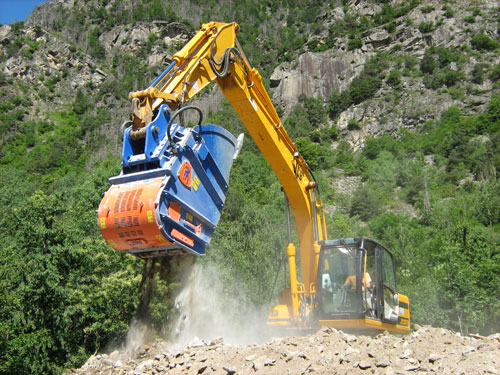

Trevi Benne BM Series - BM 35 7
⊞ Lightbox

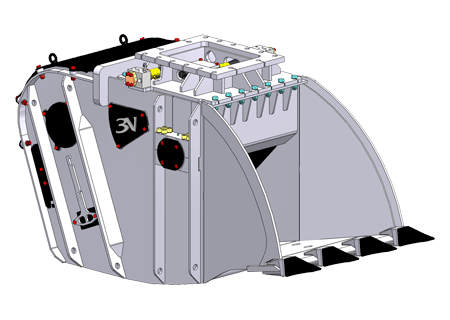

Trevi Benne BM Series - BM gray
⊞ Lightbox
Trevi Benne BM Series - BMR gray
