Gallmac 360° Hydrostatic 4WD/4WS Multi-Task Tool Carriers
Multi-Purpose Wheel Excavator and Material Handler

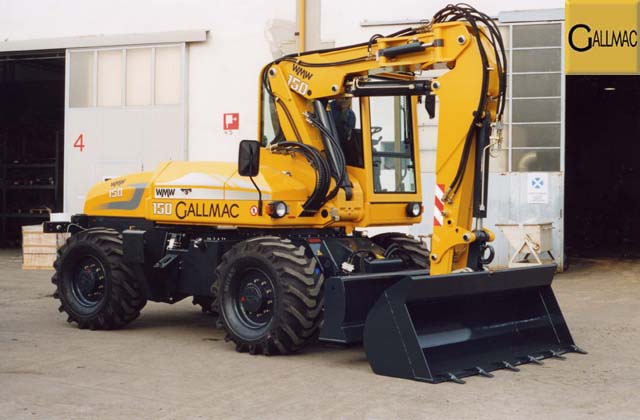

Gallmac WMW-150

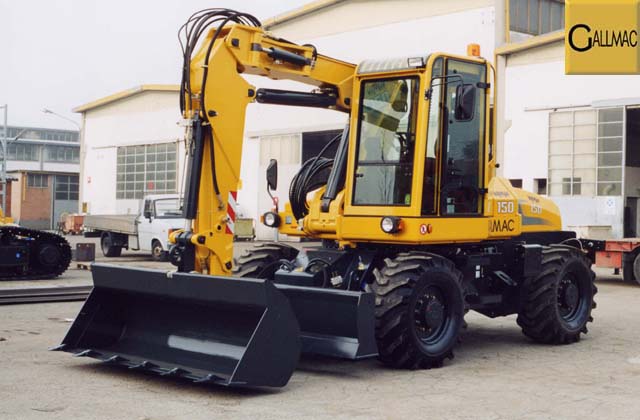

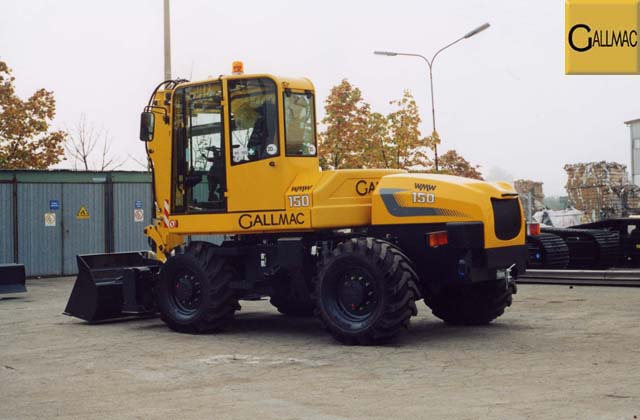

The Gallmac WMW-150 is a versatile, heavy-duty multi-purpose wheeled machine capable of functioning as an excavator, loader, crane handler, and elevator fork platform. Powered by a Deutz Turbo Intercooler diesel engine with Rexroth load-sensing hydraulics and all-wheel steering.
▶ RESTORED JOBSITE DEMONSTRATION VIDEO (Gallmac WMW-150)
Gallmac WMW-150 Engineering Specification Table
| Subsystem | Engineering Parameter | US Standard (Imperial) | Metric (SI Units) |
|---|---|---|---|
| Engine | Make and Model | DEUTZ type 2012C, 246 cu in., direct injection, liquid cooled, Turbo Intercooler (COM2 EU-RL97/68 EG-EPA Nonroad Tier 1) | DEUTZ type 2012C, 4,038 cc, direct injection, liquid cooled, Turbo Intercooler (COM2 EU-RL97/68 EG-EPA Nonroad Tier 1) |
| Engine | Maximum Power | 130 HP (95 kW) at 2,200 rpm | 95 kW (130 HP) at 2,200 rpm |
| Engine | Maximum Torque | 364 lb-ft (493 Nm) at 1,500 rpm | 493 Nm at 1,500 rpm |
| Transmission & Axles | Transmission | Rexroth hydrostatic closed circuit variable displacement pump/motor, automotive regulation, inching pedal, 2 speed ranges | Rexroth hydrostatic closed circuit variable displacement pump/motor, automotive regulation, inching pedal, 2 speed ranges |
| Transmission & Axles | Travel Speed | 0 to 15 mph (forward and backward) | 0 to 24 km/h (forward and backward) |
| Transmission & Axles | Axles | Clark Hurth steering and driving with epicycloidal hub reduction gears; fixed front, swinging rear +/-10 deg with electric lock | Clark Hurth steering and driving with epicycloidal hub reduction gears; fixed front, swinging rear +/-10 deg with electric lock |
| Brakes & Steering | Brakes | Multiple disk oil bath brakes; service on 4 wheels, parking and aid brakes electric on front wheels | Multiple disk oil bath brakes; service on 4 wheels, parking and aid brakes electric on front wheels |
| Brakes & Steering | Steering Modes | 4-wheel steering: rear road steering, 4-wheel opposite sides, 4-wheel crab steering | 4-wheel steering: rear road steering, 4-wheel opposite sides, 4-wheel crab steering |
| Brakes & Steering | Min. Steering Radius (Inner Tires / External) | 83 in. / 177 in. (turns: 3.5) | 2,100 mm / 4,500 mm (turns: 3.5) |
| Brakes & Steering | Tires | 405/70 R24 - 18X22.5 TLMPT06 | 405/70 R24 - 18X22.5 TLMPT06 |
| Hydraulic System | Main Working Pump | Rexroth variable displacement piston pump, 52 gpm (197 L/min) at 4,061 psi (280 bar) with Load Sensing proportional valves | Rexroth variable displacement piston pump, 197 L/min at 280 bar with Load Sensing proportional valves |
| Hydraulic System | Hydro-guide & Steering Pump | Gear pump 25 + 25 qts/min (6.3 + 6.3 gpm) at 2,900 psi (200 bar) | Gear pump 24 + 24 L/min at 200 bar |

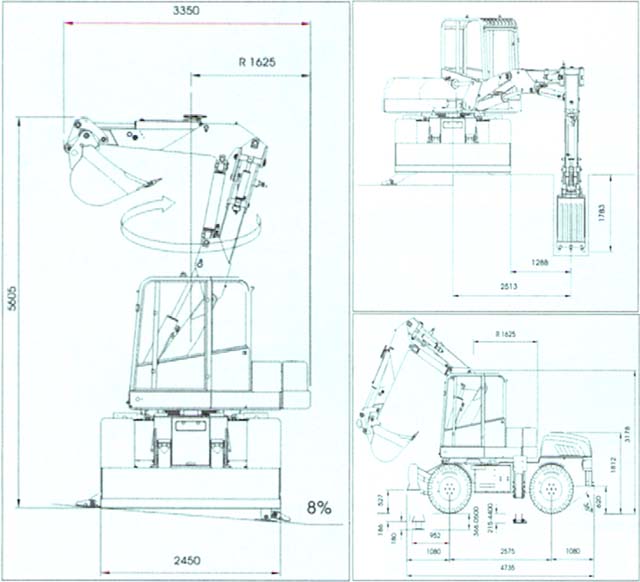

| Dimensions & Weight | Overall Machine Dimensions | Length: 187 in., Width: 96 in., Height: 125 in. | Length: 4,740 mm, Width: 2,450 mm, Height: 3,180 mm |
| Dimensions & Weight | Operating Weight (Digging / Loader) | 31,085 lbs / 32,188 lbs | 14,100 kg / 14,600 kg |

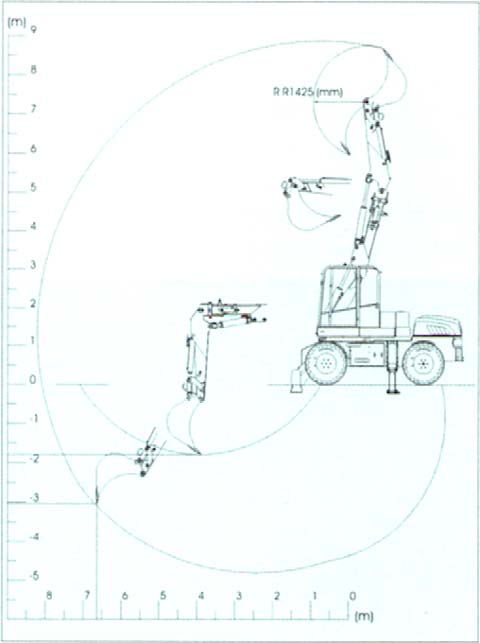

| Performance | Digger Bucket Width Range | 18 to 47 in. | 450 to 1,200 mm |
| Performance | Digger Forces | Teeth breaking force: 16,535 lbs, Penetration force: 9,259 lbs | Teeth breaking force: 7,500 kg, Penetration force: 4,200 kg |

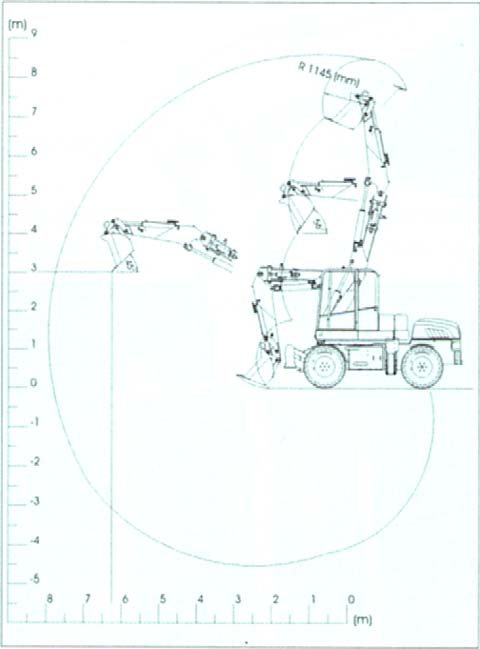

| Performance | Loading Shovel Bucket Width | 96 in. | 2,450 mm |
| Performance | Loading Shovel Forces | Teeth breaking force: 12,302 lbs, Penetration force: 12,588 lbs | Teeth breaking force: 5,580 kg, Penetration force: 5,710 kg |

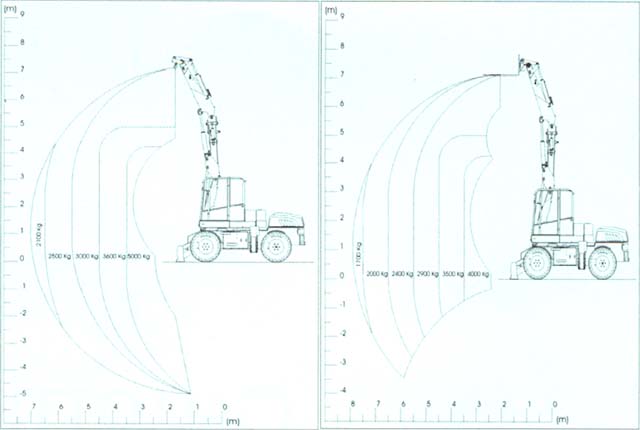

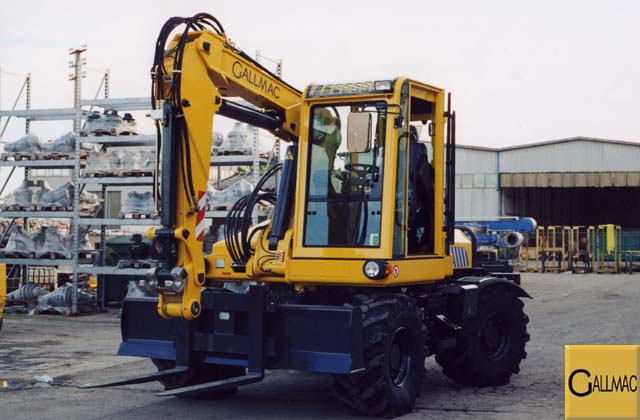

| Performance | Elevator Forks Capacity | Length: 55 in.; Capacity max radius: 3,748 lbs; Capacity min radius: 8,819 lbs | Length: 1,400 mm; Capacity max radius: 1,700 kg; Capacity min radius: 4,000 kg |
| Performance | Hook Elevator Capacity | Capacity max radius: 4,630 lbs; Capacity min radius: 11,023 lbs | Capacity max radius: 2,100 kg; Capacity min radius: 5,000 kg |
