Division 02 · eei-trevibenne.com
EEI-Trevi Benne Italian Demolition & Recycling Tools
F & FM Series · TREVI BENNE S.P.A. ITALY
F Hydraulic & FM Mechanical Fixed Pulverizers
Secondary demolition pulverizers designed for ground operations, floor slab processing, rebar separation, and concrete reduction, available in both hydraulic (F Series) and excavator bucket cylinder driven mechanical (FM Series) variants.
✓ Hook-shaped fixed body design optimized for ground-level processing and slab demolition
✓ Hardox wear-plate construction with bolted interchangeable teeth
✓ FM mechanical series requires no dedicated auxiliary hydraulic circuits
✓ Integrated high-speed regenerative Speed Valve on hydraulic F series
Complete F & FM Series Engineering Specification Matrix
| Model | Type | Carrier Weight (lbs) | Operating Weight (lbs) | Jaw Opening A (in) | Jaw Depth B (in) | Jaw Width C (in) | Blade Length (in) | Crushing Force X (t) | Crushing Force Y (t) | Working Pressure (psi) | Oil Flow (g/min) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F 07 | Hydraulic | 13,230 : 22,050 | 1,210 | 18.7 | 52.3 | 13.0 | 5.5 | 70 | 25 | 3,625 | 10.6 / 15.9 |
| F 12RD* | Hydraulic | 28,665 : 37,485 | 2,625 | 21.2 | 68.5 | 16.5 | 8.7 | 150 | 65 | 4,500 | 31.7 / 52.8 |
| F 18RD* | Hydraulic | 39,690 : 55,125 | 4,210 | 31.9 | 72.8 | 18.5 | 10.2 | 200 | 80 | 4,500 | 52.8 / 79 |
| F 20RRD* | Hydraulic | 50,715 : 61,740 | 5,100 | 31.9 | 87.8 | 18.5 | 10.2 | 200 | 80 | 4,500 | 52.8 / 79 |
| F 25RD* | Hydraulic | 55,125 : 70,560 | 5,490 | 80.0 | 77.0 | 22.4 | 10.2 | 235 | 95 | 4,500 | 66 / 92.5 |
| F 30RD* | Hydraulic | 72,765 : 99,225 | 6,770 | 82.7 | 82.7 | 25.2 | 10.2 | 275 | 105 | 4,500 | 79 / 105.7 |
| F 70RD* | Hydraulic | 143,325 : 187,425 | 14,175 | 108.3 | 105.0 | 31.5 | 12.8 | 415 | 170 | 4,930 | 118.9 / 138.3 |
| FM 10 | Mechanical | 13,230 : 22,050 | 1,320 | 21.6 | 22.8 | 17.7 | 5.5 | 55 / 75 | 20 / 27 | Excavator | Excavator |
| FM 15 | Mechanical | 22,050 : 33,075 | 1,875 | 28.1 | 27.2 | 21.6 | 7.9 | 70 / 105 | 27 / 35 | Excavator | Excavator |
| FM 20 | Mechanical | 33,075 : 55,125 | 3,200 | 36.0 | 30.3 | 26.0 | 7.9 | 90 / 135 | 35 / 45 | Excavator | Excavator |
| FM 25 | Mechanical | 55,125 : 79,380 | 3,530 | 41.3 | 31.9 | 26.0 | 7.9 | 120 / 180 | 45 / 60 | Excavator | Excavator |
| FM 35 | Mechanical | 79,380 : 105,840 | 4,410 | 47.2 | 34.6 | 27.5 | 7.9 | 160 / 225 | 55 / 75 | Excavator | Excavator |
| FM 50 | Mechanical | 105,840 : 143,325 | 6,175 | 53.5 | 41.3 | 31.5 | 9.8 | 195 / 300 | 70 / 100 | Excavator | Excavator |
| FM 70 | Mechanical | 143,325 : 176,400 | 8,050 | 59.0 | 45.3 | 37.4 | 9.8 | 260 / 400 | 100 / 130 | Excavator | Excavator |
| FM 100 | Mechanical | 176,400 : 220,500 | 9,920 | 61.0 | 49.2 | 47.2 | 9.8 | 350 / 500 | 130 / 150 | Excavator | Excavator |
Jobsite Field Demonstration Videos (F & FM Series)
Trevi Benne F30ND Field Operation
Restored Factory & Jobsite Photo Gallery (F & FM Series · 8 High-Res Photos)
Open All 22 Trevi Benne Albums (184 Photos) in MOD-LIGHTBOX ->
⊞ Lightbox
Trevi Benne F Series - F 18ND
⊞ Lightbox

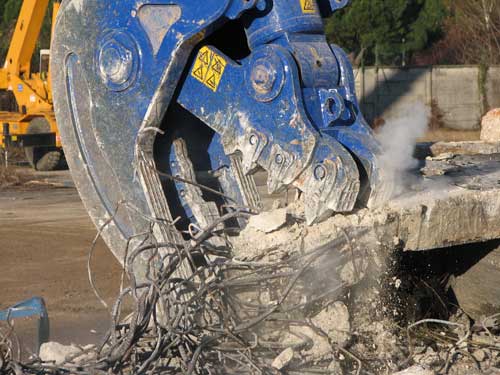

Trevi Benne F Series - F 25ND
⊞ Lightbox

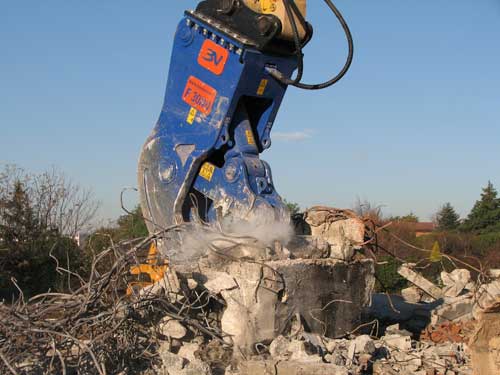

Trevi Benne F Series - F 30ND
⊞ Lightbox

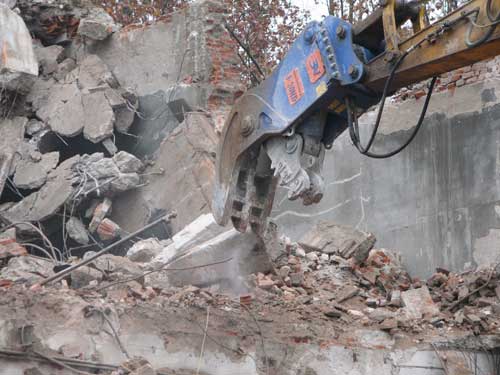

Trevi Benne F Series - F 30ND 1
⊞ Lightbox

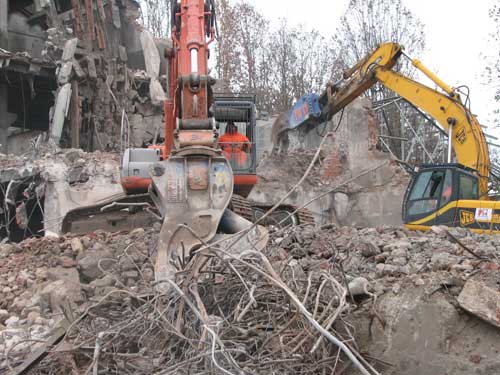

Trevi Benne F Series - F 30ND 2
⊞ Lightbox

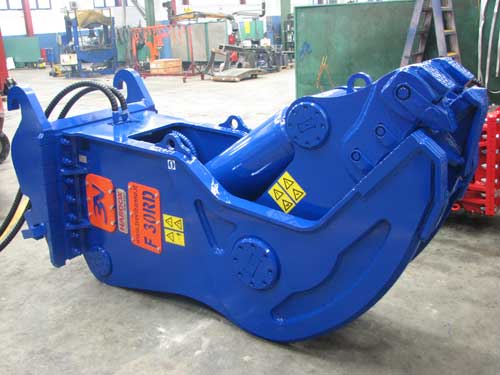

Trevi Benne F Series - F 30RD
⊞ Lightbox

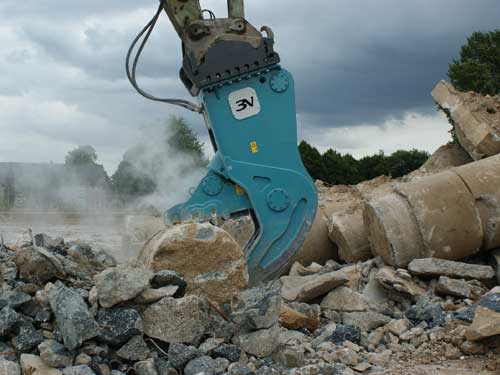

Trevi Benne F Series - F 70RD
⊞ Lightbox

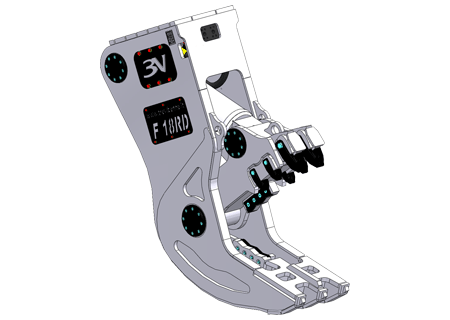

Trevi Benne F Series - F gray
