BVR Series · TREVI BENNE S.P.A. ITALY
Hydraulic Rotary Screening Buckets
Rotary screening buckets designed for primary selection of waste materials, demolition debris, stony soils, canalization backfill, beach cleaning, and recycling aggregates.
✓ Rotary trommel drum design with interchangeable screening meshes
✓ Available in standard and high-speed Speed configurations
✓ Built with Hardox wear plate components for high abrasion resistance
✓ Integrated dual-action shock and relief manifold protecting hydraulic drive motors
Complete BVR Series Engineering Specification Matrix
| Model | Excavator Weight (lbs) | Attachment Weight (lbs) | Depth A (in) | Height B (in) | Length L (in) | SAE Capacity (cu yd) | Pressure (psi) | Oil Flow (gpm) | Rotation Speed (rpm) |
|---|---|---|---|---|---|---|---|---|---|
| BVR 07 | 6,615 : 11,025 | 550 | 17.5 | 31.7 | 27.6 | 0.50 | 1,500 / 1,750 | 8 / 13 | 18 / 24 |
| BVR 08 | 11,025 : 17,640 | 770 | 20.3 | 36.6 | 31.5 | 0.70 | 1,500 / 1,750 | 8 / 13 | 18 / 24 |
| BVR 09 | 17,640 : 26,460 | 1,520 | 27.2 | 41.5 | 35.4 | 0.90 | 1,500 / 1,750 | 13 / 19 | 18 / 24 |
| BVR 12C | 28,665 : 35,280 | 2,910 | 31.1 | 57.5 | 47.2 | 1.10 | 1,500 / 1,750 | 21 / 38 | 18 / 24 |
| BVR 12C SPEED | 28,665 : 35,280 | 2,910 | 31.1 | 57.5 | 47.2 | 1.10 | 1,500 / 3,000 | 38.0 | 35 / 40 |
| BVR 14C | 37,485 : 46,305 | 3,460 | 36.4 | 65.0 | 55.1 | 1.20 | 1,500 / 1,750 | 21 / 38 | 18 / 24 |
| BVR 14C SPEED | 37,485 : 46,305 | 3,460 | 36.4 | 65.0 | 55.1 | 1.20 | 1,500 / 3,000 | 38.0 | 35 / 40 |
| BVR 15C | 48,510 : 66,150 | 3,990 | 38.6 | 74.4 | 63.0 | 1.40 | 1,500 / 1,750 | 21 / 38 | 18 / 24 |
| BVR 15C SPEED | 48,510 : 66,150 | 3,990 | 38.6 | 74.4 | 63.0 | 1.40 | 1,500 / 3,000 | 38.0 | 35 / 40 |
| BVR 19C | 68,355 : 88,200 | 5,770 | 36.2 | 78.7 | 68.9 | 1.90 | 1,500 / 1,750 | 21 / 38 | 18 / 24 |
Jobsite Field Demonstration Videos (BVR Series)
Trevi Benne BVR14C Field Operation
Trevi Benne BVR14C-SPEED Field Operation
Restored Factory & Jobsite Photo Gallery (BVR Series · 10 High-Res Photos)
Open All 22 Trevi Benne Albums (184 Photos) in MOD-LIGHTBOX ->
⊞ Lightbox
Trevi Benne BVR Series - BVR14C
⊞ Lightbox

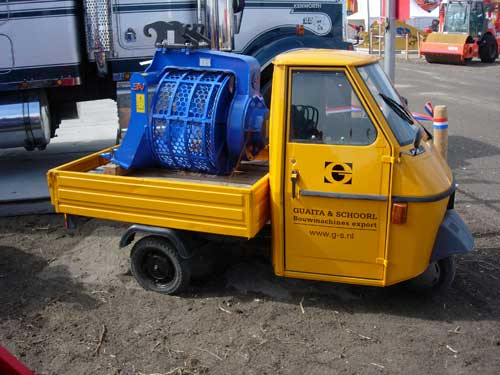

Trevi Benne BVR Series - BVR 07
⊞ Lightbox

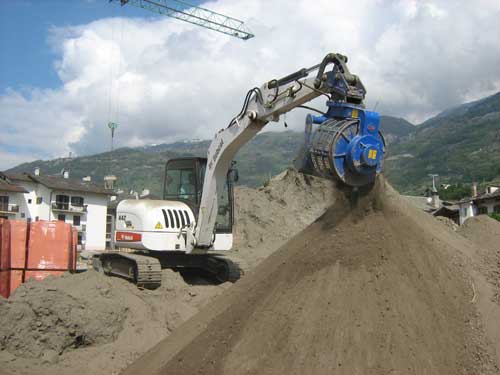

Trevi Benne BVR Series - BVR 08
⊞ Lightbox

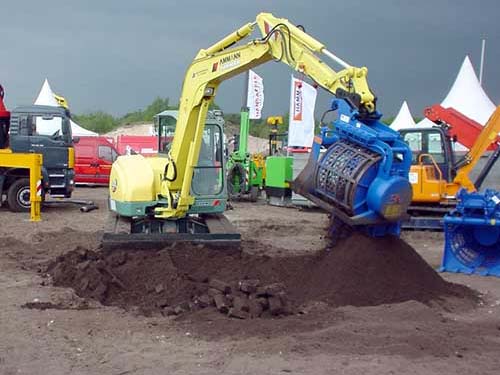

Trevi Benne BVR Series - BVR 09
⊞ Lightbox

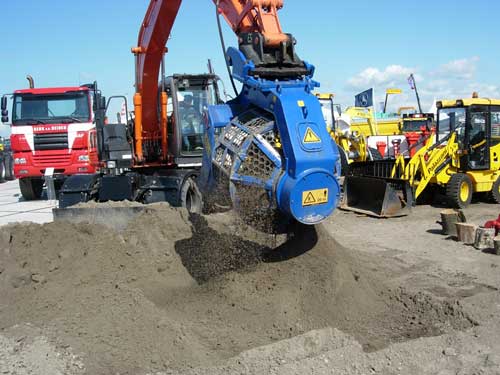

Trevi Benne BVR Series - BVR 12C
⊞ Lightbox

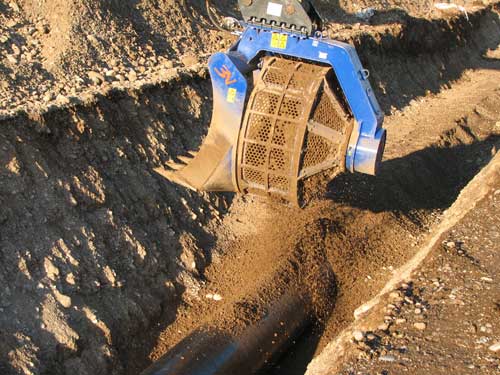

Trevi Benne BVR Series - BVR 14C Speed
⊞ Lightbox

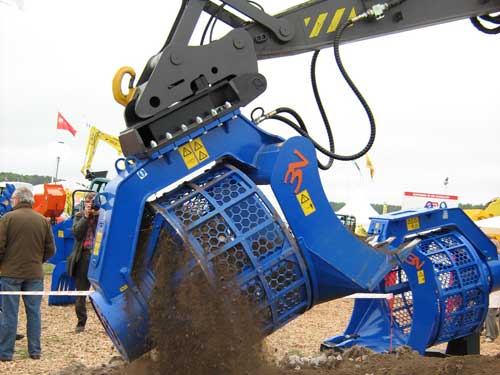

Trevi Benne BVR Series - BVR 14C Speed 2
⊞ Lightbox

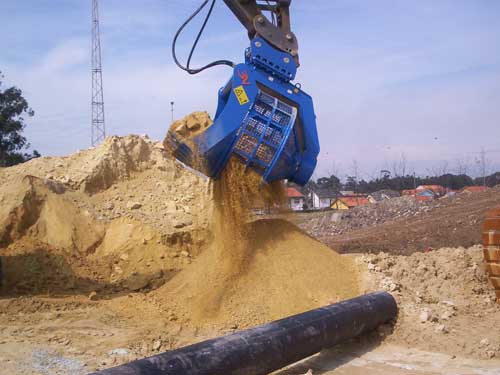

Trevi Benne BVR Series - BVR 15C
⊞ Lightbox

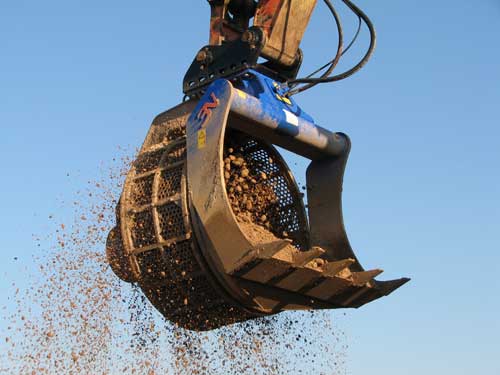

Trevi Benne BVR Series - BVR 15C Speed
⊞ Lightbox

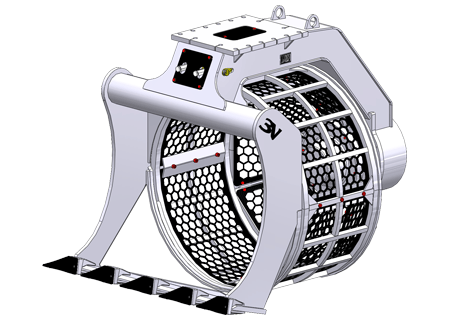

Trevi Benne BVR Series - BVR gray
